| ITEM |
Part Number |
Description |
Price |
 |
|
| FIAT SPIDER CARBURETOR PARTS | |||||

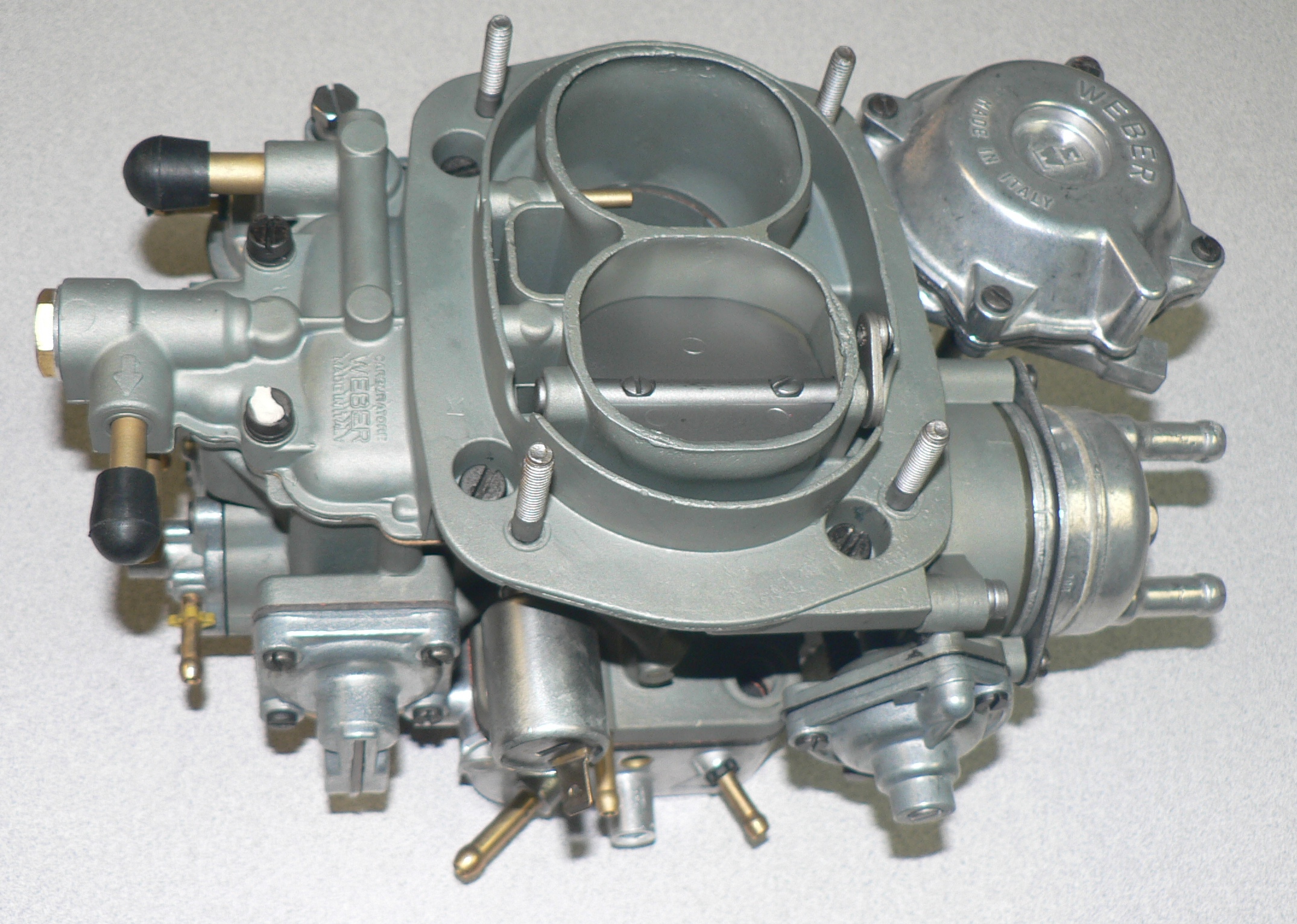

| 1* | 4450633R | REBUILT OEM CARBURETOR 1979-80 |
 |
$285.00 |
|
| 7525 * | CORE CHARGE-REBUILT CARB | $55.00 |
|
||
| * | CORE CHARGE WILL BE REFUNDED UPON THE RETURN | OF THE OLD CARB | IN REBUILDABLE CONDITION | ||
| 2 | 9928422 |
CARBURETOR REPAIR KIT |
 |
$43.44 |
|
| 3 | 9936560A | MAJOR CARB KIT | INQUIRE | ||
| 4 | 4256162 | PHENOLIC SPACER | $18.66 | ||
| T M | 9927981 | GASKET FOR SPACER-IN 9928422 CARB KIT SEE ITEM 31 |
|
||

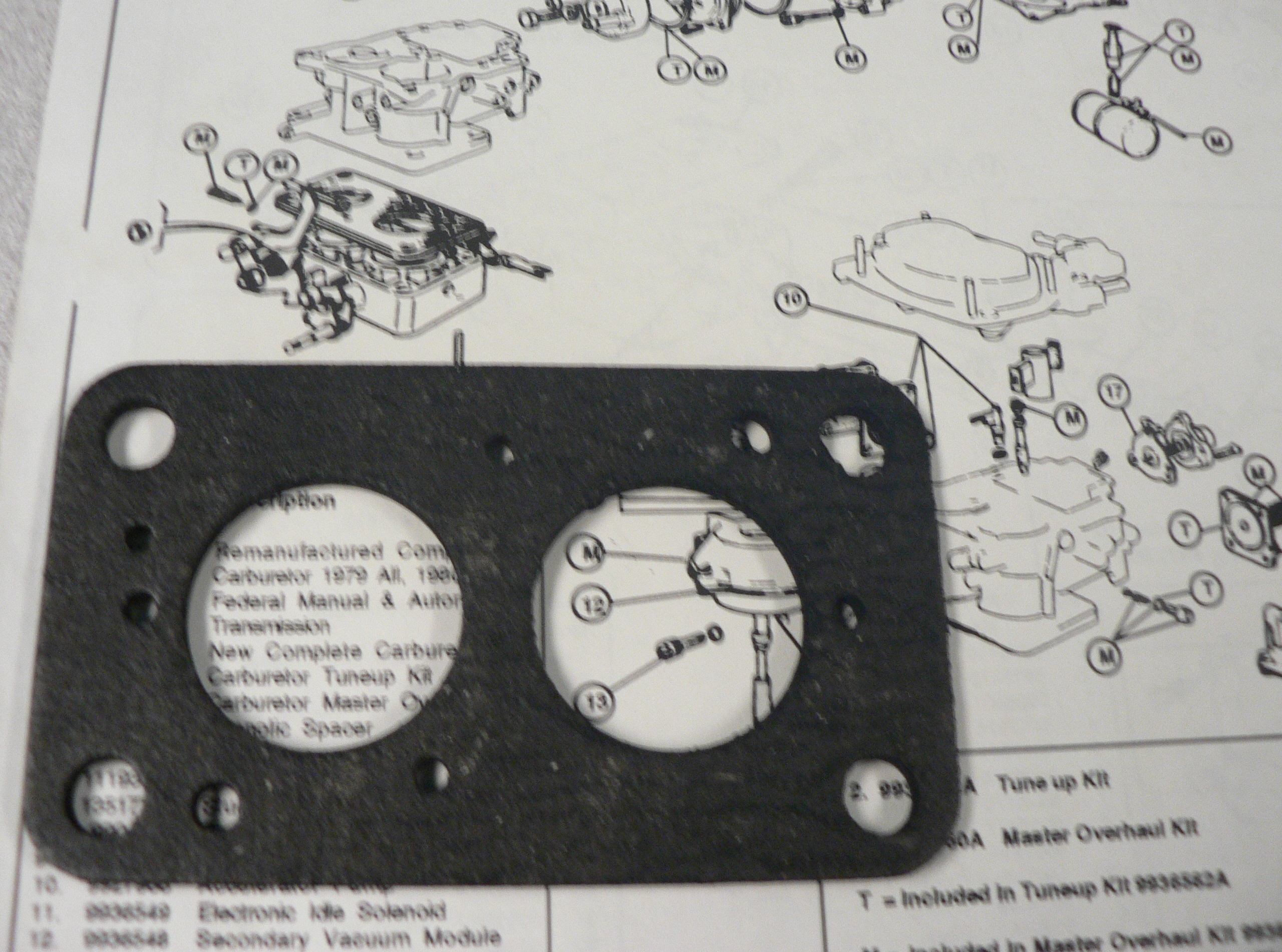

| 4175021 | THICK BASE PLATE GASKET |
 |
$14.58 |
|
|
| 4304749 | THIN GASKET-EITHER SIDE OF 4175021 | $7.14 | |||
| M | 9909525 | STUD -AIR CLEANER | $8.06 |
|
|
| 5 | 16100811 | NUT | $0.80 | ||
| 6 | 11193874 | LOCK WASHER | $1.58 | ||
| 7 | 13517720 | STUD | $4.80 | ||
| 8 | 9904687 | SCREW | $1.48 | ||
| 9 | 9919725 | FILTER SCREEN |
 |
$11.55 |
|
| 10 | 9927988 | ACCEL PUMP DIAPHRAGM-OE WEBER | $19.78 | ||
| 10 | 9927988A | ACCEL PUMP DIAPHRAGM | $12.78 | ||
| 10A | 9927089 | PUMP JET | $15.08 | ||
| SOME CARS | HAD A 8 mm SOLENIOD PLEASE CHECK BEFORE ORDERING | HAD A 10 mm SOLENIOD CHECK BEFORE ORDERING | |||
| 25 | 9936549 | IDLE SOLENOID 8mm |
 |
$48.80 |
|
| 25 | 9934794 | IDLE SOLENOID 10MM |
|
$48.80 |
|
| 12 | 9936548A | VACUUM SECONDARY DIAPHRAGM |
 |
$44.24 |
|
| 13 | 9902867 | SCREW | $1.50 | ||
| 14 | 9934659 | SCREW | $1.40 | ||

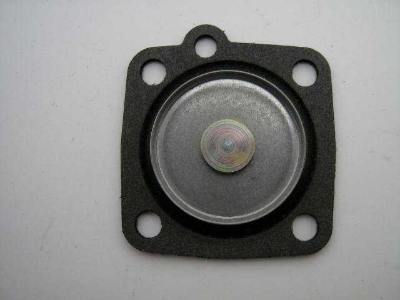

| 15 | 9936517 | CHOKE VALVE DIAPHRAGM |
 |
$19.52 |
|
| 16 | 9936547A | VACUUM ACCELERATOR DIAPHRAGM-SQUARE |
 |
$19.25 |
|

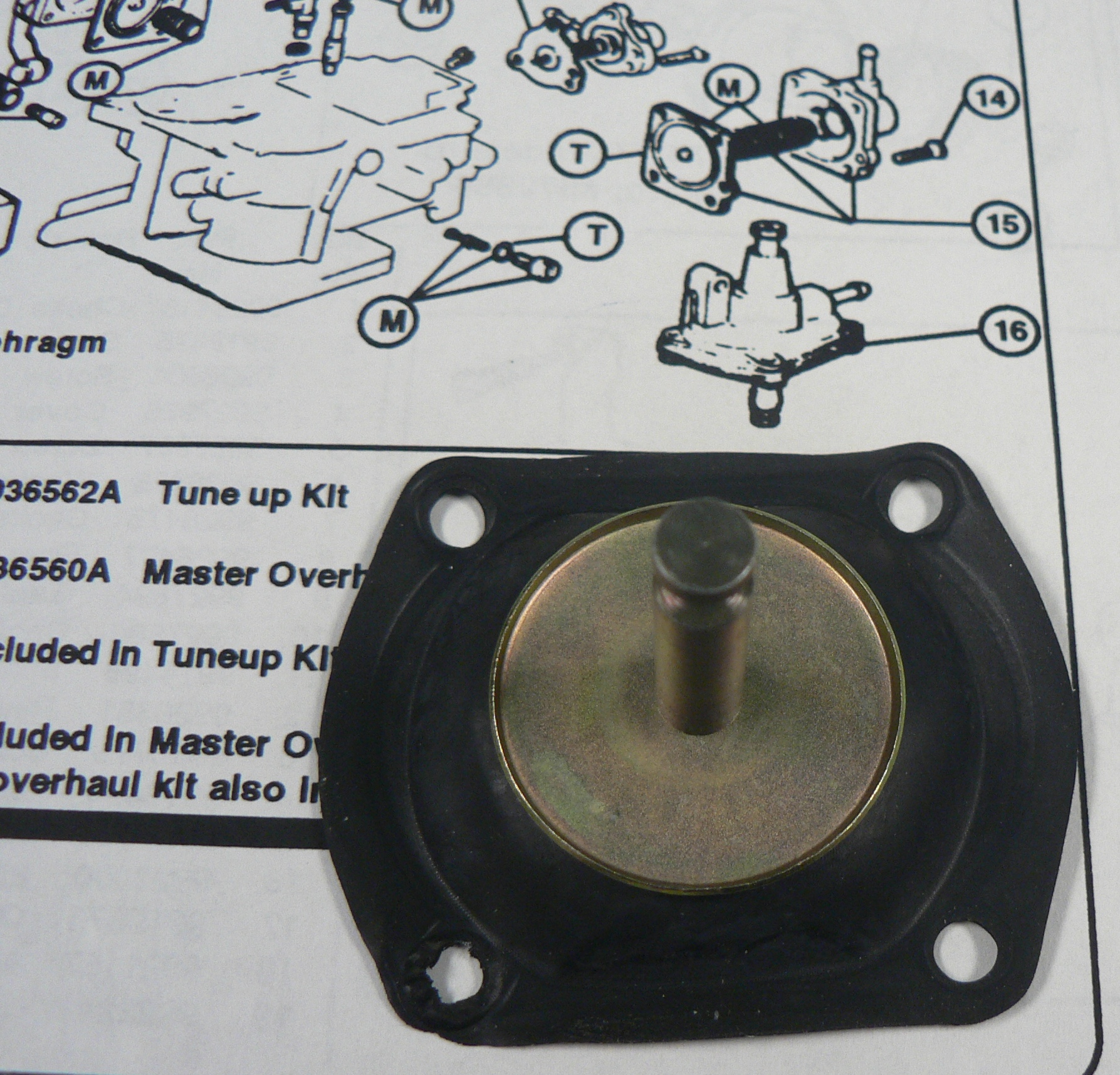

| 16 | 9936547B | VACUUM ACCELERATOR DIAPHRAGM-RECTANGULAR |
 |
$22.80 |
|
| SOME CARS | HAD A RECTANGULAR DIAPHRAGM PLEASE CHECK BEFORE ORDERING | ||||

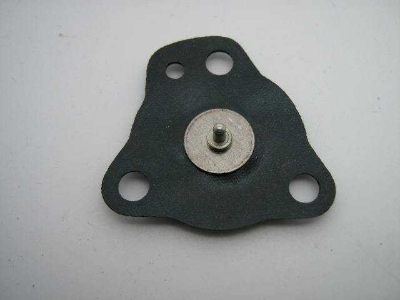

| 17 | 9936559 | IDLE DIAPHRAGM (1263) |
 |
$18.48 |
|
| 18 | 9928418 | CHOKE "PULL-OFF" DIAPHRAGM |
 |
$19.95 |
|
| 19 | 9928001 | IDLE SCREW | $16.32 | ||
| 20 | 9927997 | SCREW | $1.10 | ||
| 21 | 9926475 | CHOKE WATER OUTLET |
 |
$37.67 |
|
| 9927886 | PLASTIC CHOKE GASKET |
 |
$14.93 |
|
|
| 22 | 9916752 | IDLE JET | $7.22 | ||
| 23 | 9918723 | IDLE JET O RING | $1.28 | ||
| 24 | 9919731 | IDLE JET HOLDER | $12.82 | ||
| 25 | 9916772 | CARB FLOAT |
 |
$28.82 |
|
| 26 | 9926477 | WATER OUTLET GASKET |
 |
$2.25 |
|
| 28 | 9921378 | NEEDLE & SEAT SET | $14.58 | ||
| 29 | 9927988 | ACCELERATOR PUMP | $19.78 | ||
| 30 | 9927089 | ACCEL PUMP NOZZLE | $18.80 | ||
| 31 | 9927980 | THROTTLE BODY SPACER |
 |
$18.66 |
|

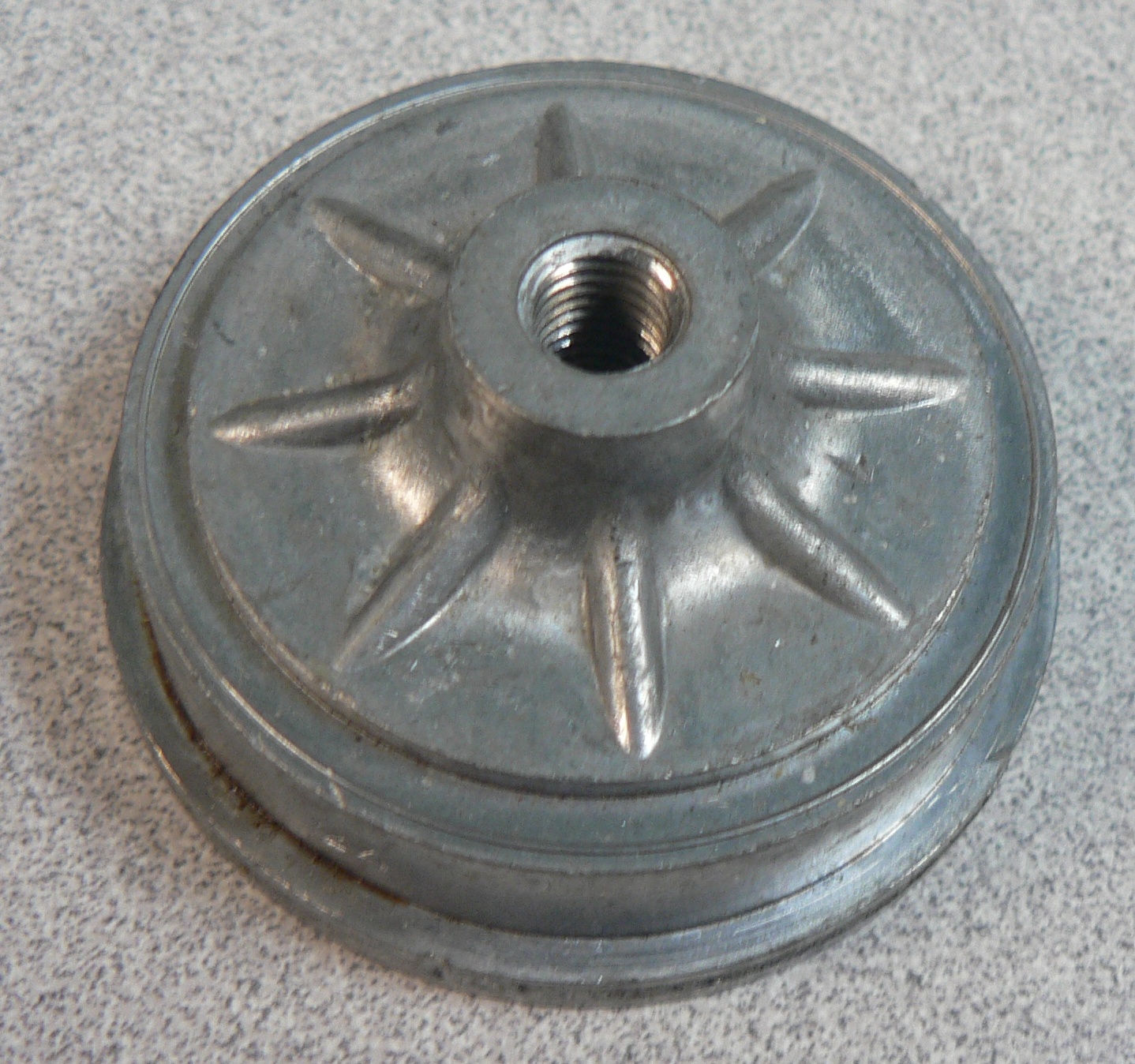

| 32 | 9927992 | ELECTRIC CHOKE ELEMENT |
 |
$32.94 |
|
| 33 | 4064 | CHOKE ACTUATING ARM |
 |
$26.57 |
|

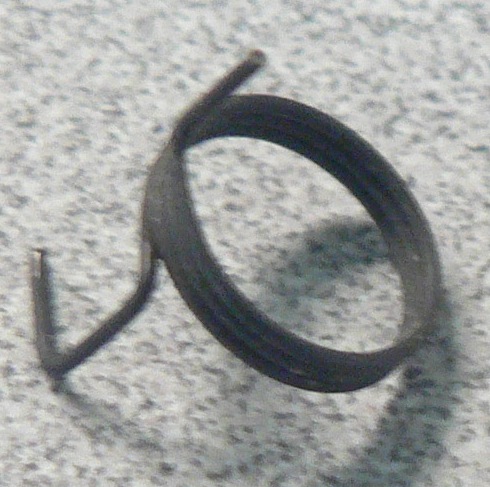

| 7903 | CHOKE ACTUATING ARM SPRING |
 |
$13.85 |
|
|
| 7904 | CHOKE ACTUATING ARM PIN |
 |
$14.42 |
|
* THESE ARE ORIGINAL EQUIPMENT CARBS REBUILT BY A MAJOR USA REBUILDER. THEY HAVE A TWO YEAR WARRANTY. THEY ARE THE ORIGINAL EQUIPMENT CARB THAT CAME ON YOUR CAR. PLUS YOUR ORIGINAL AIR CLEANER WILL FIT. DON'T GET ONE OF THOSE WIRE CAGE WITH FOAM INSERTS SET YOU CAR ON FIRE LIKE THE ONES ON MY 1972 124 SPORTS COUPE DID!
* CORE CHARGE WILL BE REFUNDED UPON THE RETURN OF THE OLD CARBURETOR IN REBUILDABLE CONDITION
